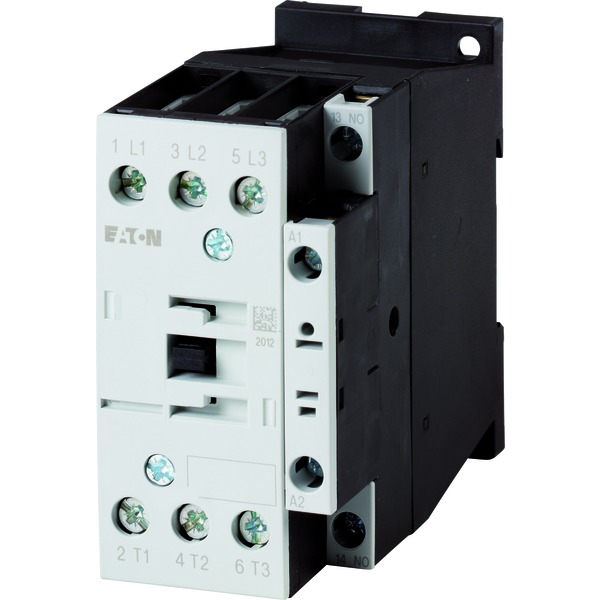

Eaton Moeller Contactors 7.5kw-18.5kw 3P

Eaton Moeller Contactors 7.5kw-18.5kw 3P

The newly developed DIL M contactors are significantly more compact than their predecessors. An auxiliary contact up to 38 A is always integrated. The advantage of this is particularly striking with the DC contactors that now are the same size as their AC counterparts. This makes planning, engineering and fitting a lot easier and reduces the need to alter control systems, even if the control current needs to change for another customer.

Engineering:

• Four sizes cover the performance range up to 170 A
• Only three widths up to 170 A
• Auxiliary contacts integrated up to 38 A
• Finger proof version up to 170 A
• Side-mounted auxiliary contacts for flat installation applications
• Accessories here

Mounting:

• Reliable wiring of two conductors using double box terminals on contactors from 7 A to 170 A
• Easy to implement control wiring using prominently situated coil connection on the device front
• AC and DC contactors with the same dimensions facilitate an identical range of accessories

Operation:

• Integral suppressor circuit with DC contactors
• AC suppressor circuit can be easily plugged-in
• Low holding power with DC contactors
• DC universal voltage range coils with enhanced voltage tolerance from 17 A

Sizes:
45 mm up to AC3 38 A(DILM38)
55 mm up to AC3 72 A(DILM72)
90 mm up to AC3 170 A(DILM170)
